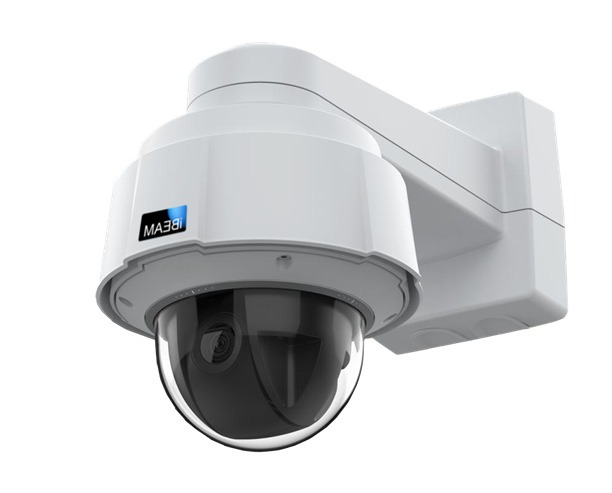

iBEAM PTZ 4K Camera with Cellular Communication

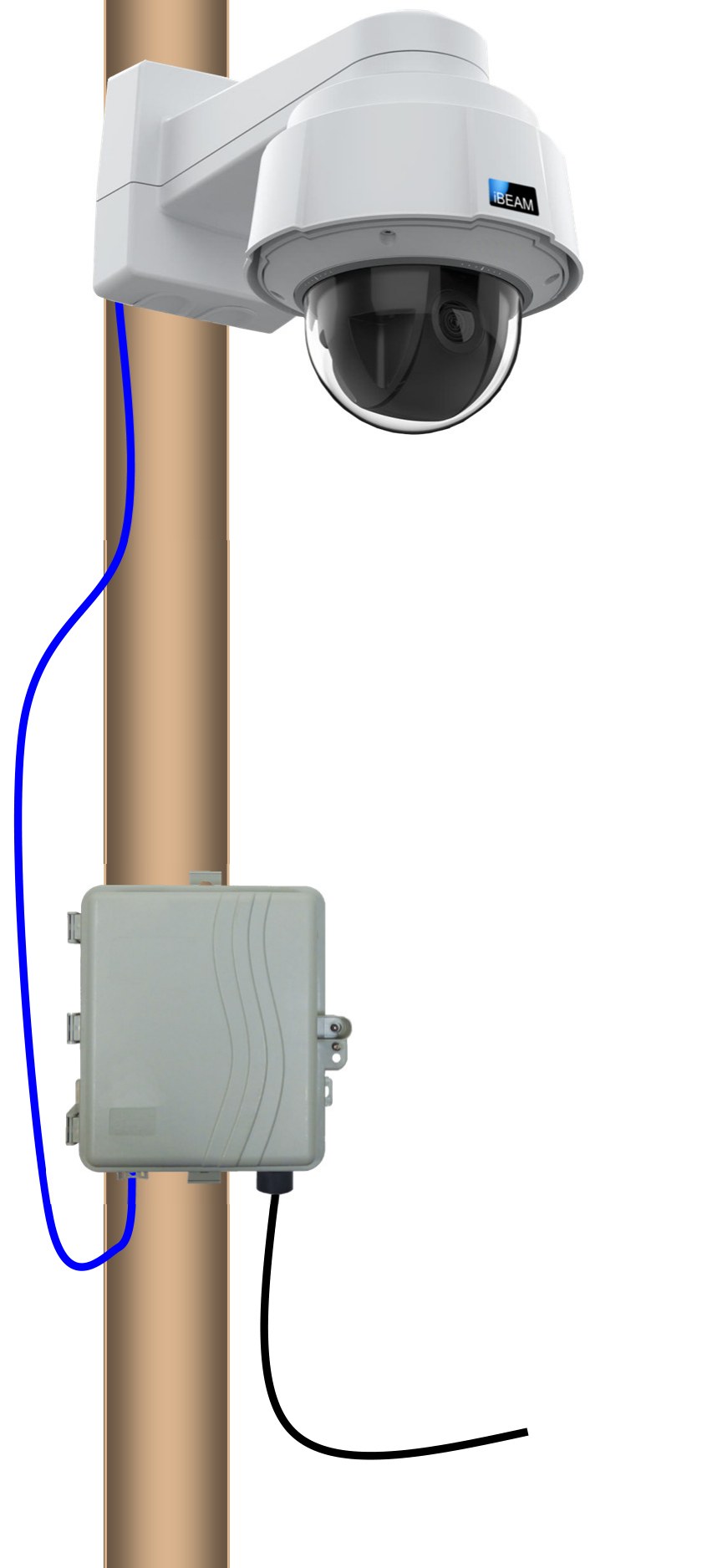

Attach camera to a pole or other mounting surface using provided straps.

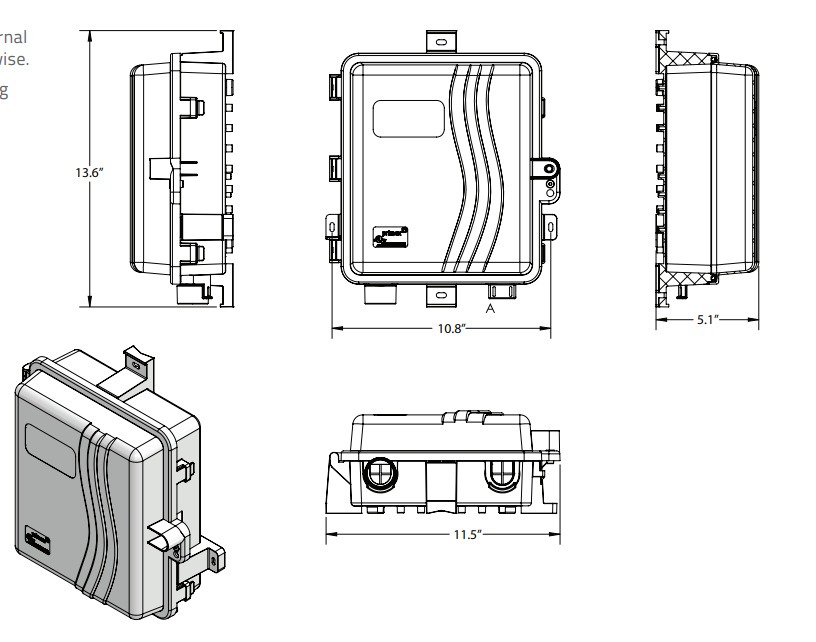

Attach the communication box to the pole / mounting surface using the provided straps.
Gently pull the cable gland out of its seated location, then feed the network cable into the box and reseat the gland.
Plug the network cable into the open port of the PoE power supply.
Plug the unit into the appropriate power source as indicated on the PoE power supply.
After the camera has been mounted and plugged in for 15–20 minutes, you will receive an email* with information regarding how to view your camera.
*If you don't see this email from our Support Team, please reach out to them at 800.403.0688 ext. 2 and they can verify the system is online. The Support Team is available Monday through Friday, 8:00 am–5:00 pm Mountain Standard Time. When calling, if they're assisting another customer please leave a voicemail and they'll return your call as soon as possible.
Enjoy!

Use this template on your site plan to estimate the approximate view from different locations.

68.3° horizontal viewing angle (360° pan)

Max 131.2' of horizontal view for every 100' of distance from the project

42.1° vertical viewing angle

80.9' of vertical view for every 100' of distance from the project (40.5' above the camera level)

iBEAM CONSTRUCTION CAMERAS

PTZ 4K
Installation Guide

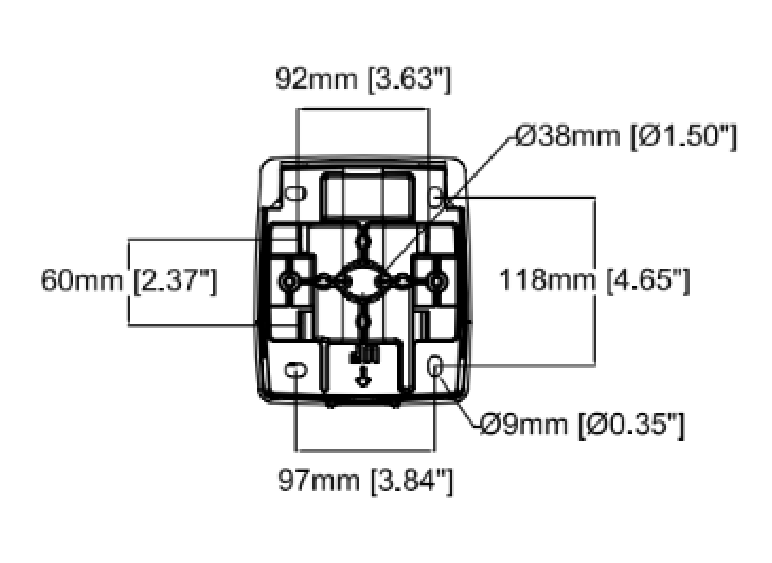

Mounting Specifications

The iBEAM PTZ 4K Construction Cameras include mounting hardware designed for poles with a diameter of 1 1/2–16 in. It can also be mounted to beams.

For additional questions or support with your iBEAM PTZ 4K camera, contact our support team: 800.403.0688 x 2.

Pole Diameter	1 1/2 – 16 in	Environment	Indoor / Outdoor
Dimensions	232 × 271 mm (9.13" × 10.7")	Weight	3.75 kg (8.3 lb)
Casing	Powder-coated aluminum casing. Color: white NCS S 1002-B	Network	AT&T 4G LTE cellular
