iBEAM CONSTRUCTION CAMERAS
Fixed 8K Titan
Installation Guide
Installation Guide
Installation Guide

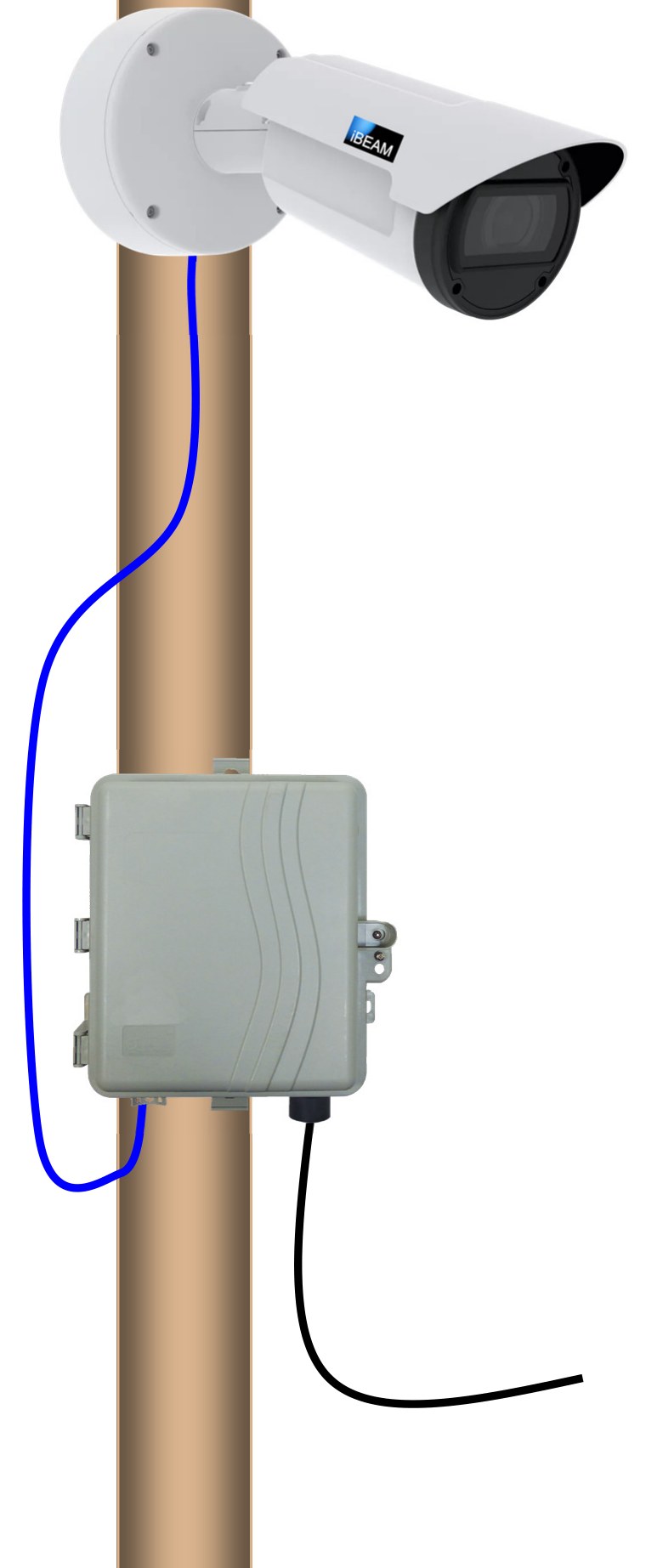

iBEAM Fixed 8K Titan Camera with Cellular Communication

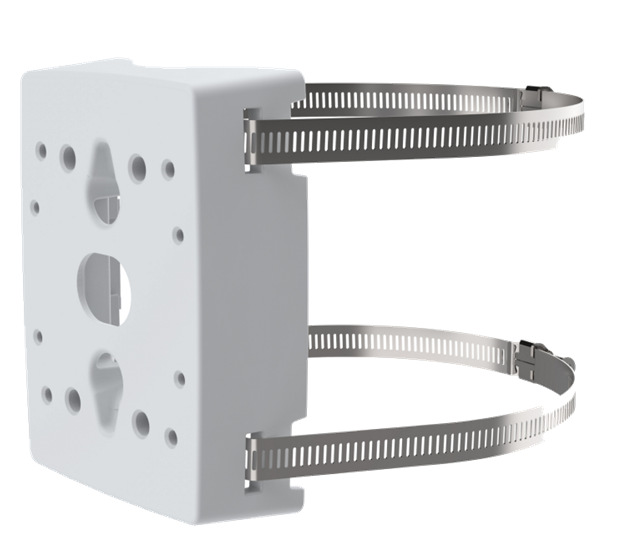

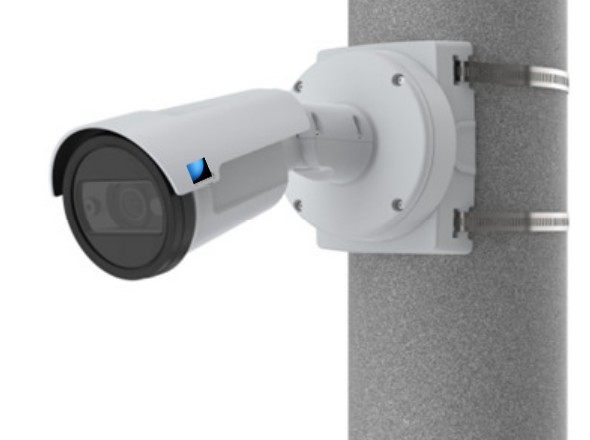

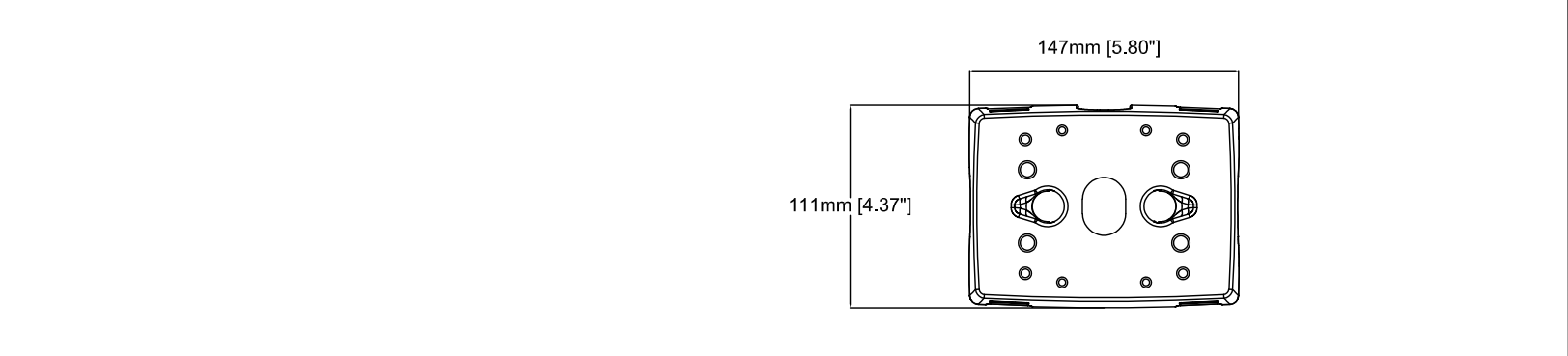

- Attach the camera to a pole or other mounting surface using the provided straps.

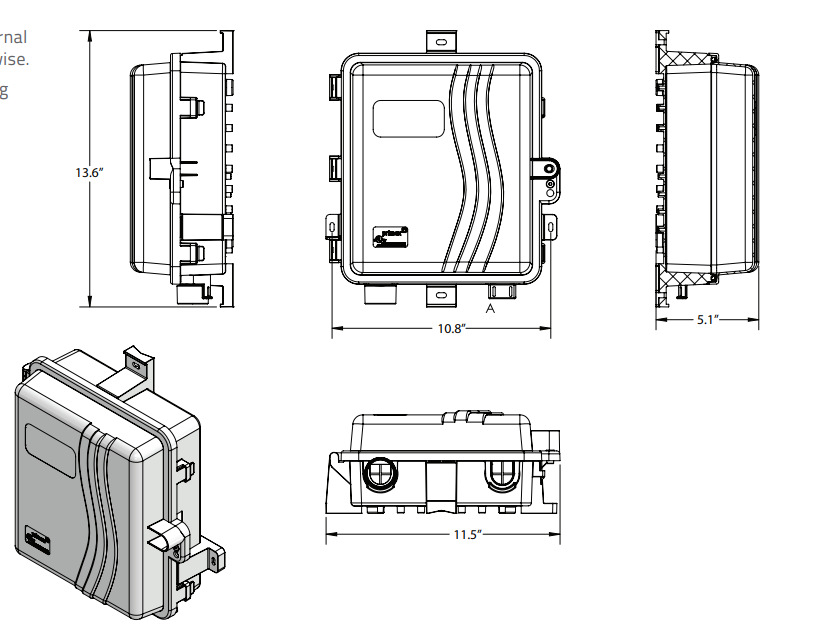

- Attach the communication box to the pole / mounting surface using the provided straps.
- Gently pull the cable gland out of its seated location, then feed the network cable into the box and reseat the gland.
- Plug the network cable from the camera into the open port of the PoE power supply.
- Plug the unit into the appropriate power source as indicated on the PoE power supply.
- After the camera has been mounted and plugged in for 15–20 minutes, you will receive an email* with information regarding how to view your camera.
- *If you don't see this email from our Support Team, please reach out to them at 800.403.0688 ext. 2 and they can verify the system is online. The Support Team is available Monday through Friday, 8:00 am–5:00 pm Mountain Standard Time. When calling, if they're assisting another customer please leave a voicemail and they'll return your call as soon as possible.
- Enjoy!
Approximate
Angle of View Estimator
Use this template on your site plan to estimate the approximate view from different locations.
90° horizontal viewing angle
Max 200' of horizontal view for every 100' of distance from the project
49° vertical viewing angle
Max 91' of vertical view for every 100' of distance from the project
