iBEAM PTZ 4K™

8.3 Megapixel Streaming Camera with Pan-Tilt-Zoom

The iBEAM PTZ 4K construction camera delivers even more popular camera features in one easy-to-use package.

Live streaming video from your job site
Remote-controllable pan-tilt-zoom — 360° view
20x optical zoom
Online photo archive & 4K UltraHD time-lapse movies
Cellular communication included · IR sensor and cut filter

You provide 120V AC power or use an iBEAM solar kit. If a non-cellular connection is preferred, the camera can also connect to your job site's network.

Contact our team at 800.403.0688 or sales@ibeamsystems.com to get started.

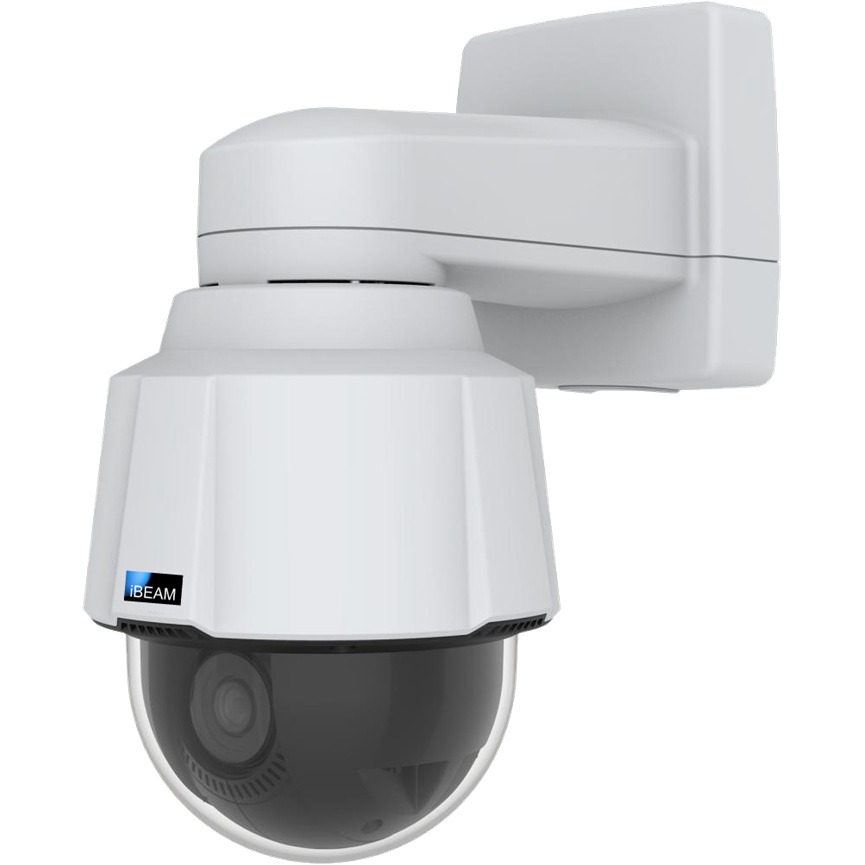

iBEAM Fixed 4K camera with all-weather communication enclosure

Equipment Includes:

8.3 megapixel streaming camera with remote pan, tilt and 20x optical zoom
Outdoor-rated enclosure with defogging
4G cellular modem with high gain antennas and 120V AC power supply
IR sensor and cut filter*
All-weather modem/power enclosure
Pole / wall mounting brackets
iBEAM Lifetime Warranty

Online Hosting Package:

Web-based Camera Console with:

Online photo archive with digital pan-tilt-zoom
Live video stream
On-demand and downloadable time-lapse movies

8.3 megapixel photos captured every 10 minutes – 6:00 a.m. to 6:00 p.m. Secure remote photo storage with automatic back-up. Embeddable Most Recent Photo for your website. Live video viewing and control. Unlimited online time-lapse movies. Custom edited & post-processed 4K Ultra HD time-lapse movie at end of project.

Custom Hosting Services:

Archive photos and make movies from multiple views. Custom archiving schedule / 24-hour photo archiving.

Optional Items:

Video recording drive
Solar power kit
Non-penetrating roof mount

You hold copyrights to all photos and movies!

ANGLE OF VIEW ESTIMATOR

68.3° horizontal viewing angle (360° pan)

131.2' of horizontal view for every 100' of distance from the project

42.1° vertical viewing angle

80.9' of vertical view for every 100' of distance from project (40.5' above the camera level)

iBEAM CONSTRUCTION CAMERAS

Connecting you to your projects

Camera Specifications

Pan / Zoom / Tilt	360° endless / 20x optical / 180° below the horizon line
Sensor	1/2.5" Progressive Scan RGB CMOS
Auto focus, auto white balance, auto day/night mode, electronic image stabilization	Yes
Video compression	H.264
Video compression rate	Up to 60 fps @1080p / Up to 30 fps @ 4K
Minimum illumination	Color: 0.2 lux B/W: 0.02 lux

Hosting Services Specifications

Live Streaming Video — Size / Max. simultaneous viewers / Restrictions	Up to 3840 x 2160 (Network) \| Up to 1080HD (Cellular) / 20 / View restriction, PTZ control restriction
Photo Archive — Photo size / Aspect ratio	3820 x 2160 (8.3 megapixels) / 16:9 (widescreen)
On-Demand Time-lapse Movies — Resolution / Format / Customization / Downloadable	4K UltraHD, 1080p HD, 720p HD / mp4 / Date-time range, resolution, speed, time stamps / Yes
Access Control	Restricted to authorized users or open access. Unlimited user accounts. Live Video, Time-lapse Movie access restriction
Operating System / Browser	Windows, Mac OS, Android, iOS. Internet Explorer 9+, Chrome, Firefox, Safari
Cellular Data Service	AT&T 4G LTE, 5GB / month

Physical Specifications

Camera size	9.13 x 10.7 in (232 x 271 mm)
Communication enclosure size	10.8 x 13.6 x 5.1 in
Power	120 V AC, 28W
Operating temperature	-4°F to 122°F
Mounting	Wall mount. Pole mount adapter included (for poles 1.5" to 16" diameter)
Communication	AT&T 4G LTE

iBEAM PTZ 4K™

Specifications

The iBEAM PTZ 4K camera system includes an 8.3 megapixel live streaming PTZ camera in an outdoor-rated enclosure with defogging, 4G cellular modem with high-gain antenna and 120V power supply in all-weather enclosure and wall/pole mounting bracket. Rental camera specifications may vary.

iBEAM Fixed 4K camera with 4G cellular communication and 120V power supply

Available for rent or purchase.

Call our team of camera specialists at 1.800.403.0688 for a custom price quote.
