iBEAM Fixed 4K™

HD Streaming Video

The iBEAM Fixed 4K camera system combines live video and time-lapse photo archiving in one easy-to-use solution.

Live streaming video from your job site
109° super wide-angle view
Online photo archive
4K Ultra HD time-lapse movies
Cellular communication included

You provide power, or select an iBEAM solar or rechargeable 12V power kit. If a non-cellular connection is preferred, the camera can also connect to your job site's network.

Call our team of camera specialists at 1.800.403.0688 to get started.

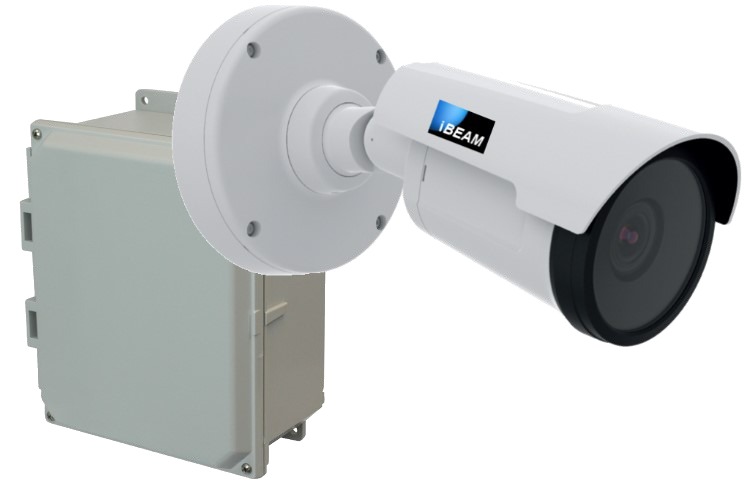

iBEAM Fixed 4K camera with all-weather communication enclosure

Equipment Includes:

8.3 megapixel streaming camera in outdoor-rated enclosure
109° super wide-angle lens
IR sensor/illuminators
4G cellular modem with high gain antennas and 120V AC power supply
All-weather modem/power enclosure
Pole / Wall mounting brackets
iBEAM Lifetime Warranty

Online Hosting Package:

Web-based Camera Console with:

Online photo archive with digital pan-tilt-zoom
Live video stream
On-demand and downloadable time-lapse movies

Photos saved every 10 minutes, 6:00 a.m. to 6:00 p.m. Embeddable Most Recent Photo for your website. Custom edited and post-processed 4K UltraHD time-lapse movie at end of project. Cellular data service.

Custom Hosting Services:

Custom archiving schedule / 24-hour photo archiving

Optional Items:

Onboard video recording drive
Solar power kit
Rechargeable 12V power kit
Non-penetrating roof mount

You hold copyrights to all photos and movies!

ANGLE OF VIEW ESTIMATOR

109° horizontal viewing angle

Max 288' of horizontal view for every 100' of distance from the project

57° vertical viewing angle

Max 152' of vertical view for every 100' of distance from the project

iBEAM CONSTRUCTION CAMERAS

Connecting you to your projects

Camera Specifications

Zoom	3.5x optical (for setup only)
Sensor	1/2.5" Progressive Scan CMOS
Auto focus, auto white balance, auto day/night mode	Yes
Video compression	H.264
Video compression rate	Up to 30 fps
Minimum illumination	Color: 0.18 lux B/W: 0.04 lux
IR illumination	Long-life 850 nm IR LEDs
IR reach	25 m (82 ft) or more depending on the scene

Hosting Services Specifications

Live Streaming Video — Size / Max. simultaneous viewers	Up to 3840 x 2160 (Network) \| Up to 1080HD (Cellular) / 20
Photo Archive — Photo size / Aspect ratio	3820 x 2160 (8.3 megapixels) / 16:9 (widescreen)
On-Demand Time-lapse Movies — Resolution / Format / Customization / Downloadable	4K UltraHD, 1080p HD, 720p HD / mp4 / Date-time range, resolution, speed, time stamps / Yes
Access Control	Restricted to authorized users or open access. Unlimited user accounts. Live Video, Time-lapse Movie access restriction
Operating System / Browser	Windows, Mac OS, Android, iOS. Internet Explorer 9+, Chrome, Firefox, Safari
Cellular Data Service	Verizon or AT&T 4G LTE, 5GB / month

Physical Specifications

Camera size	5 3/16" x 10 1/4"
Communication enclosure size	10" x 8" x 5"
Power	120 VAC (20W power consumption)
Operating temperature	-22°F to 122°F
Mounting	Wall mount. Pole mount adapter included (for poles 4" to 16" diameter)
Network	Verizon or AT&T cellular

iBEAM Fixed 4K™

Specifications

The iBEAM Fixed 4K camera system includes an 8.3 megapixel live streaming camera in an outdoor-rated enclosure, 4G cellular modem with high-gain antenna, 120V power supply in all-weather enclosure and wall/pole mounting brackets.

iBEAM Fixed 4K camera with 4G cellular communication and 120V power supply

Available for rent or purchase.

Call our team of camera specialists at 1.800.403.0688 for a custom price quote.
